Heltec IOT lora Node ESP32 WiFi Lora V2/Cubecel ASR650x ASR6501 SX1262 Lora GPS/STM32 Lora 433 868MHz-915MHz for Arduino

£15£22

AB01 868-915
AB01 868-915
AB02 868-915
AB02 868-915
AB02S 868-915
AB02S 868-915
Cubecel AB01 433
Cubecel AB01 433
Cubecel AB02 433
Cubecel AB02 433
Cubecel AB02A 433
Cubecel AB02A 433
Cubecel AB02A 868
Cubecel AB02A 868
Cubecel AB02A 915
Cubecel AB02A 915
Cubecel AB02S 433
Cubecel AB02S 433
Lora Node 151 433
Lora Node 151 433
Lora Node 151 868
Lora Node 151 868
Lora Node 151 915
Lora Node 151 915
Stick Lite 433
Stick Lite 433
WIFI Lora 32 868-915
WIFI Lora 32 868-915
WIFI Lora 32 V2 433
WIFI Lora 32 V2 433
Wireless Stick 433
Wireless Stick 433
Clear

Description

  • Brand Name: Heltec Automation
  • Compatibility: Others
  • Model Number: HTIT-WB32LA915
  • Frequency: 433 868-915MHZ LORA
  • Master: ESP32/ASR6501 SX1262 LORA

433MHZ Antenna

868-915MHZ Antenna

WiFi Lora 32 V2 /Wireless Stick/Wireless Stick Lite

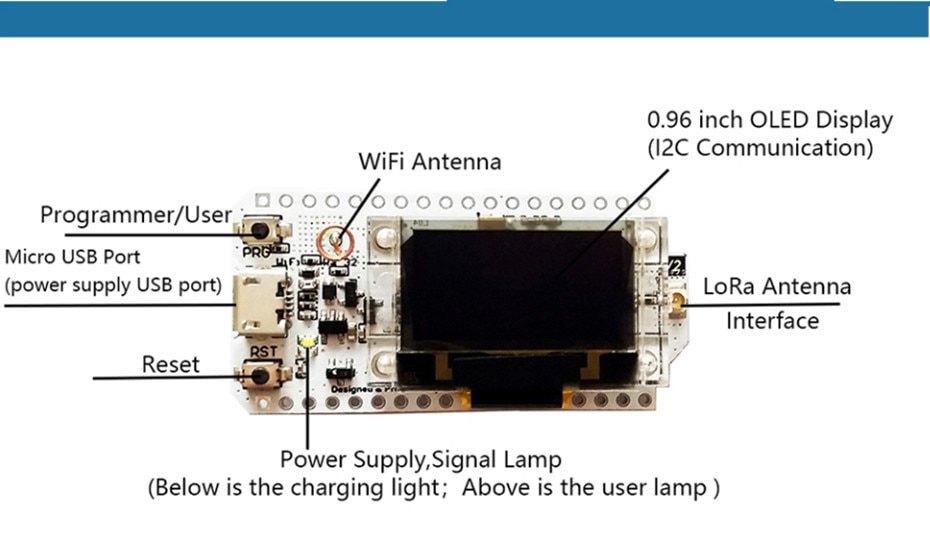

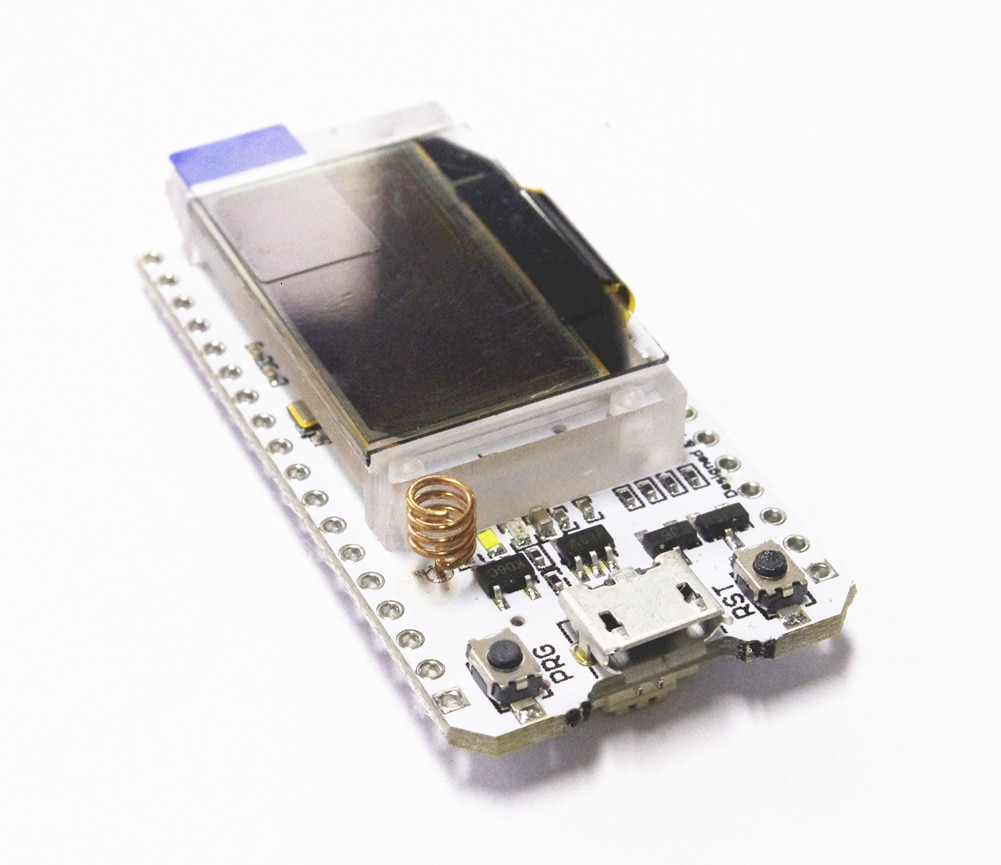

WiFi Lora 32 V2: 0.96inch OLED

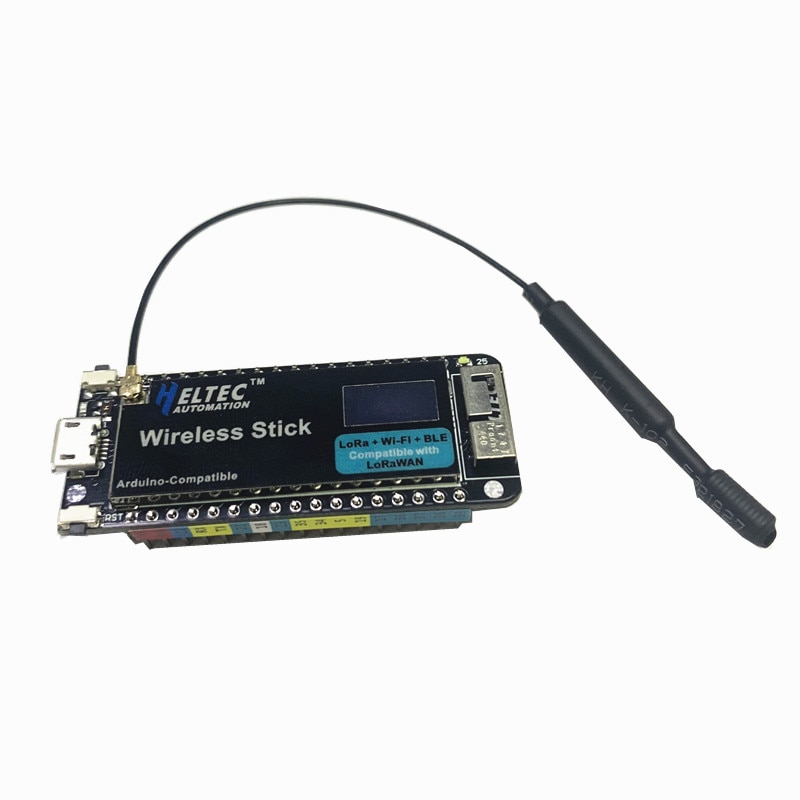

Wireless Stick : 0.49inch OLED

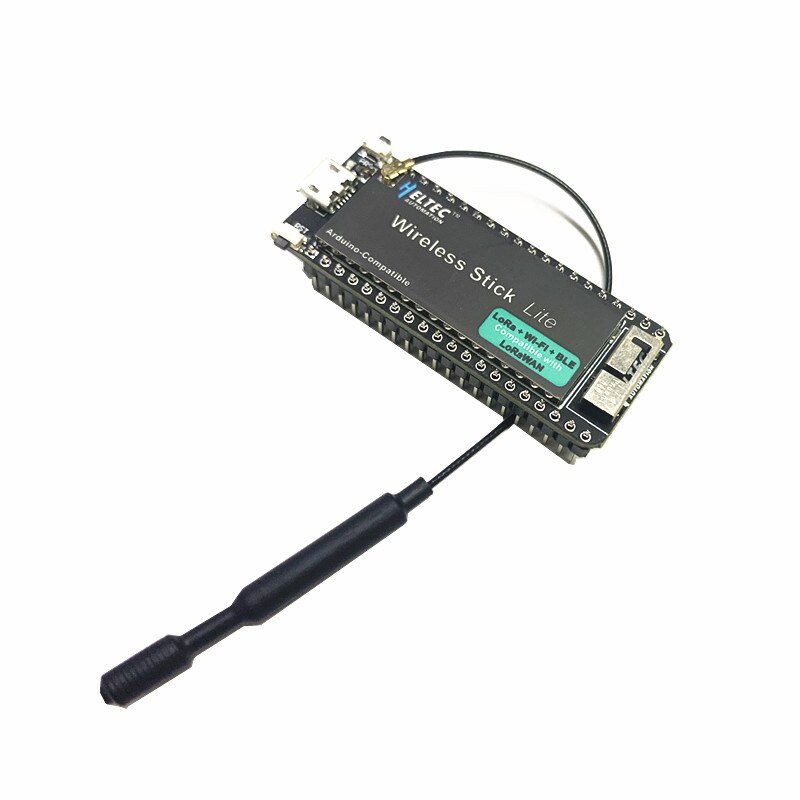

Wireless Stick Lite: No display

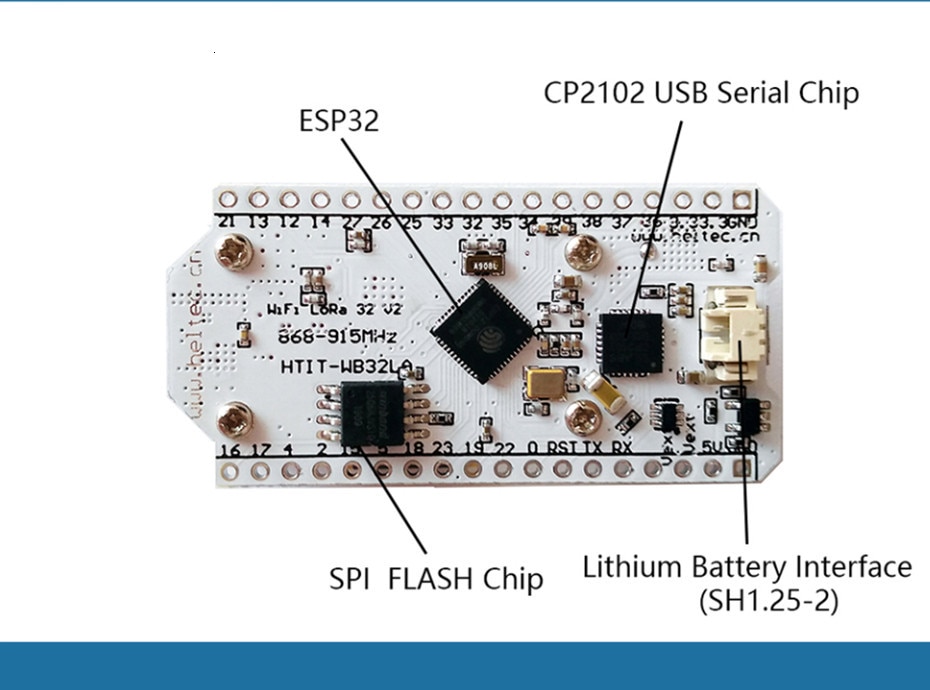

Frequency: 240MHz

FLASH:64M-bits

The processor: 2*Tensilica LX6 + 1*ULPThe processor

Main control chip:ESP32

LoRachip support frequency band: SX1276(868-915、923MHz);

Open communication distance:3KM

Computing power:As high as 600 dmips

Dual mode bluetooth: Traditional bluetooth and BLE low power bluetooth

The development environment:Perfect support for Arduino

Working voltage: 3.3v~ 7v

Operating range temperature:-40~80℃

Receiver sensitivity:-139dbm(SF12, BW125KHz)

UDP continuous throughput:135Mbps

USB-to-UART bridge chip:CP2102

WIFI Support mode:sniffer、Station、softAP,Wi-Fi Direct

Details:

Lora Node 151

CubeCell

Based on the ASR650x series of chips, we have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels… This is the CubeCell series.

HTCC-AB01 Feture

HTCC-AB02 Overview

Perfect Arduino-Compatible!

CE and FCC certification;

Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;

LoRaWAN 1.0.2 support;

Ultra low power design, 3.5uA in deep sleep;

Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);

Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;

Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

Good impendence matching and long communication distance.
Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;

Feture

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:22 ± 1dB

Hardware resources:UART x 2; SPI x 2; I2C x 2; SWD x 1; ADCx 3
12 – bits ADC; 8 – channel DMA engine
14 x GPIO

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (IPEX) x 1
Size :50.9 x 22.9 x 8 mm

USB-UART bridge :CP2102

Battery Type :3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit:√

External device power control(Vext):√

Low power design:Deep Sleep 3.5uA

HTCC-AB02S GPS Feture

Feture

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power:22 ± 1dB

Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1
12 – bits ADC; 8 – channel DMA engine
14 x GPIO

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (IPEX) x 1

Size: 55.9 x 27.9 x 9.5 mm

USB-UART bridge :CP2102

Battery Type: 3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit :√

External device power control(Vext): √

Low power design

Deep Sleep :3.5uA

HTCC-AB02A Feture

CubeCell 1/2AA Node HTCC-AB02A

MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )

LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)

LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

LoRa maximum output power:22 ± 1dB

Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1;
12 – bits ADC; 8 – channel DMA engine;
14 x GPIO;

FLASH:128KB internal FLASH

Interface:Micro USB x 1; LoRa (SMA) x 1

Size:56.6 x 24 x 20 mm

USB-UART bridge:CP2102

Battery Type:3.7V Lithium (SH1.25 x 2 socket)

Battery detection circuit:√

External device power control(Vext):√

Low power design: Deep Sleep 3.5uA

Why choose us?

We have our own SMT factory

Professional design team, our develop engineers covers hardware system design, RF design, software design (C, C++, ASM, python, JAVA, etc.). Especially in ARM, mbed, Arduino® field.

Professional instruments and equipment for development and test

What Can We Do For You?

• Hardware design
• ARM and Mbed system software design
• Mechanical structure design;
• Automatic control system design;
• PCB & SMT produce;
• OEM & ODM.
