Xiaomi Aqara Switch D1 ZigBee Smart Zero Line Fire Wire Light Remote Control Wireless Key Wall Switches 3 Key MiHome Homekit APP

£5£53

SKU: 4000983996260 Categories: ,

Description



  • Brand Name: Xiaomi
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: aqara wireless key
  • State of Assembly: Ready-to-Go
  • Scale: 1:12
  • Features: Flashing
  • Gyro: aqara smart home
  • Control Channels: 2 Channels
  • Max Speed: aqara wall switch
  • aqara wall switch: aqara smart wall switch
  • aqara wireless switch: zigbee switch
  • wireless zigbee switch: aqara smart zigbee switch
  • APP Name: mijia app/apple homekit app
  • aqara smart wall switch: aqara switch
  • aqara smart light control: aqara smart switch
  • aqara switch wall: zigbee wall switch
  • aqara homekit: aqara smart home kit
  • aqara: aqara wall smart switch
  • aqara wall light switch: switch switch

Note:

This listing sell Aqara D1 smart switch and Hot sell model smart switch.

please choose the goods you need to make a order,thank for your cooperation.

This switch must work with the Aqara hub
 this is original aqara from xiaomi Ecological Chain, which can work on mi home app

Click the picture to buy aqara hub or another Aqara goods to achieve various function.

xiaomi aqara hub



aqara hubaqara smart gateway

The Different Between Hot Sell Model and D1 Wall Switch

D1 Wall Switch

Hot Sell Wall Switch

Indicator Light

On the front of the panel Below the panel

Function

Support three key switch
● Up to 6 trigger modes after switching to wireless switch
(Three Key-Left click, right click, middle click, left and right click, middle left click, right middle click)
● Overload protection function (only zero-fire version switch)

Single Switch(Single Click) Double Switch( Left click, Right click, left and right buttons Click at the same time)

Power

 No Neutral: single-key/double-key single-channel load maximum 800W, double-key total circuit load maximum 1600W;

● Three-key single-channel load maximum 1600W, total circuit load maximum 1600W;

 With Neutral: Single-key/double-key/three-key single-channel load maximum 2200W, total circuit load maximum 2200W.

● No Neutral–single key maximum 800W;

● No Neutral–double key maximum 800W per channel, double key total 1600W;

● With Neutral–Max 2500W

Supported Apps

D1 single key and double key can support Mijia APP and HomeKit.
D1 three key follow-up support HomeKit
Support Mijia APP. Aqara Home. HomeKit

Supported gateways

● The D1 three-key currently only supports the Aqara gateway, Xiaomi Mijia multifunction gateway V2, and Xiaomi Mijia smart multimode gateway.
● D1 single key and double key supports Aqara gateway, Xiaomi Mijia multifunction gateway V2, Xiaomi Mijia smart multimode gateway, Xiaomi Mijia air conditioning companion V1, Aqara air conditioning companion upgrade version, G2 camera
In addition to the Mijia multifunction gateway V1, all others are supported.

Verify the connection to the gateway

Press 3 times quickly Press 5 times quickly

Wiring

D1 double key: L1 right L2 left
Three keys: L1 left L2 middle L3 right
Old double key: L1 left L2 right

Note: 1.·When addingthe wall swtich or wireless switch, please select Chinese server in mijia settings.

2.This Aqara zigbee switch needs to be used with the gateway

3.The wall switch can connect the wire, can control any bulb throught the wire; while the wireless key cannot wired, only can control xiaomi smart bulb or light through ZigBee.

 Here is a diagram about how this smart light control set works, now everything can be done just with your Xiaomi Smart Home APP!

aqara smart switch

aqara smart home switch

smart wall switch
Aqara Wireless Switch

aqara switch xiaomi aqara wall switch

Features :

aqara switch xiaomi aqara wall switch

* Cannot be wired, only can control Xiaomi smart bulb or light through ZigBee

* Portable, realize controlling everywhere
* Can be used as a key doorbell
* SOS emergency call
wall switch
* Defending and withdrawing function
* Wireless frequency: 2.4GHz ( 2400 – 2483.5MHz )
* Wireless connection: ZiGBee
* Built-in CR2032 battery
* Please download the ”Mi Home” APP in Google Play or APP Store

Note:This switch has to work with Aqara gateway to achieve smart remote control function

The Real Pictures:Aq

Wall switch:

 aqara wall switch  aqara switch xiaomi aqara wall switch   xiaomi wall switch

Main Features:

Zero Line and Fire Wire Double Key Version

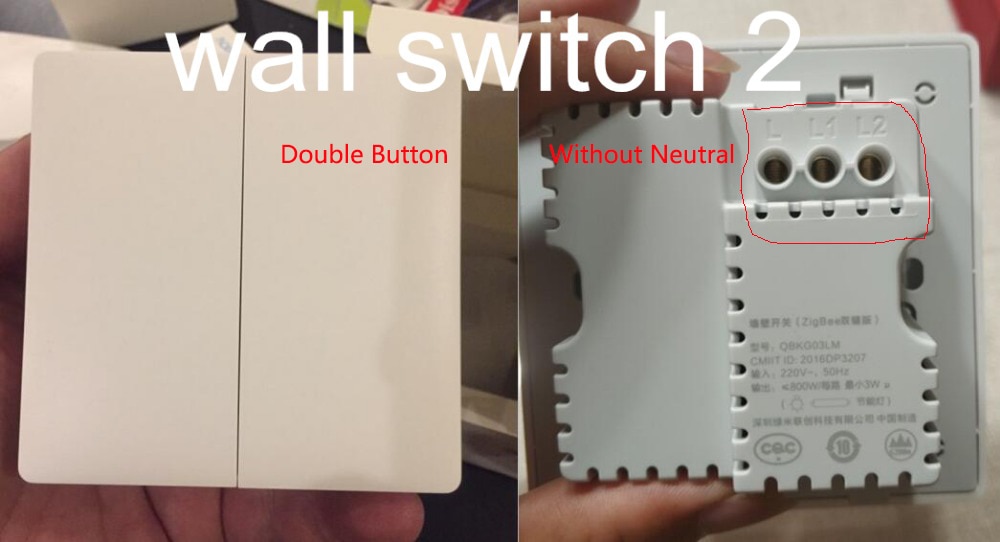

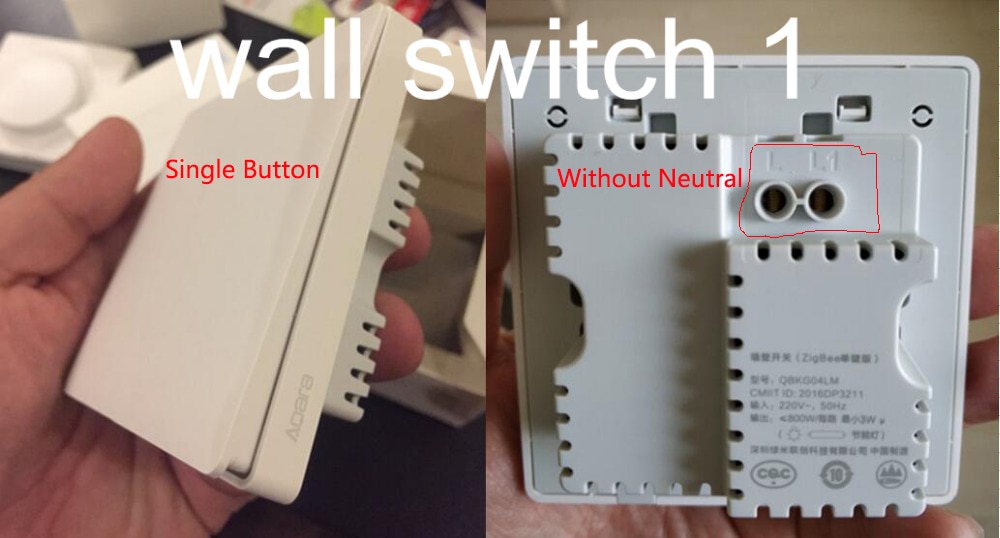

Without Neutral Wall Switch:

Single Fire wire version ( Neutral wire is not required)

Features :

* Aqara wall switch ZiGBee version

* Single key and Double key control

* Wireless connection: ZigBee

* Can connect to Aqara smart device or other Zigbee device

* Input: single firewire 220V, 50Hz

* Load range: no more than 800W / each, minimum: 3W energy saving lamps / 5W LED lights / 16W fluorescent lamps

* Working humidity: 5 – 95pct

* Please download the “Mi Home” APP in Google Play or Apple Store

The Real Pictures:

Aqara no neutral Wall Switch

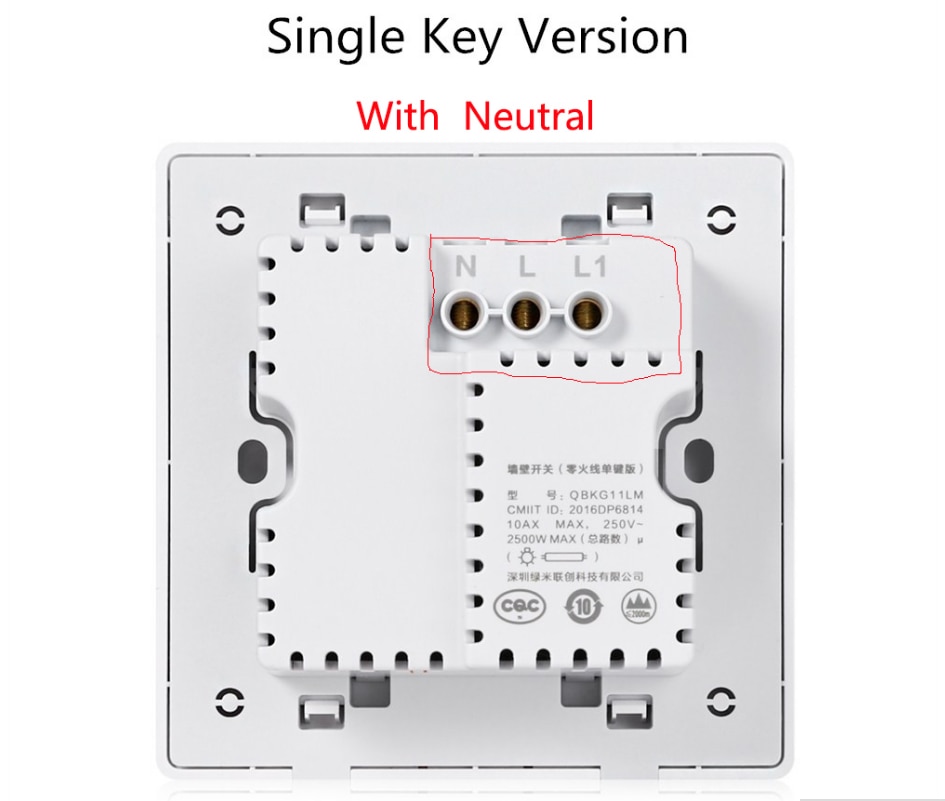

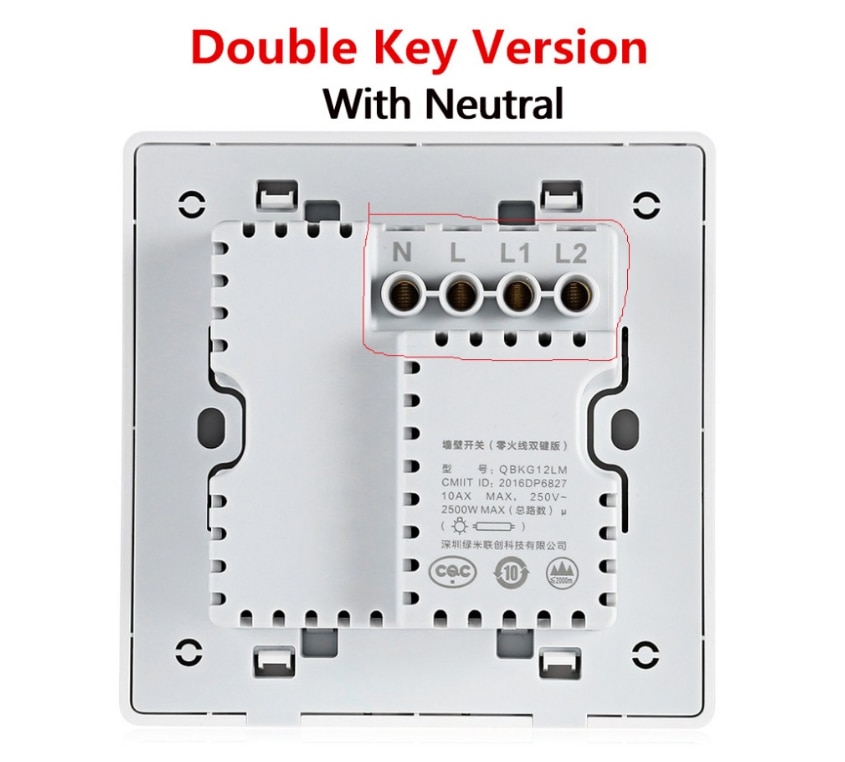

With neutral wall switch:

Main Features:
The with neutral switch, which can only be used with zero line.
Multiple application : can connect to Aqara smart devices or other ZigBee devices
Use conditions : has to work with zero line
Wireless connection: ZigBee
Wireless frequency: 2.4GHz ( 2400 – 2483.5MHz )
Power input: 10A max. 250V AC
Load output: 2500W max. total loading
Working temperature: 0 – 40 Deg.C
Working humidity: 5 – 95pct RH
Please download the “Mi Home” APP in Google Play or  Apple  Store

Showcase :

aqara door sensoraqara hub voice controlaqara smart switchaqara smart wall switch

aqara switch xiaomi aqara wall switch

aqara switch xiaomi aqara waqara switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switch Can be used as a key doorbella ll switch

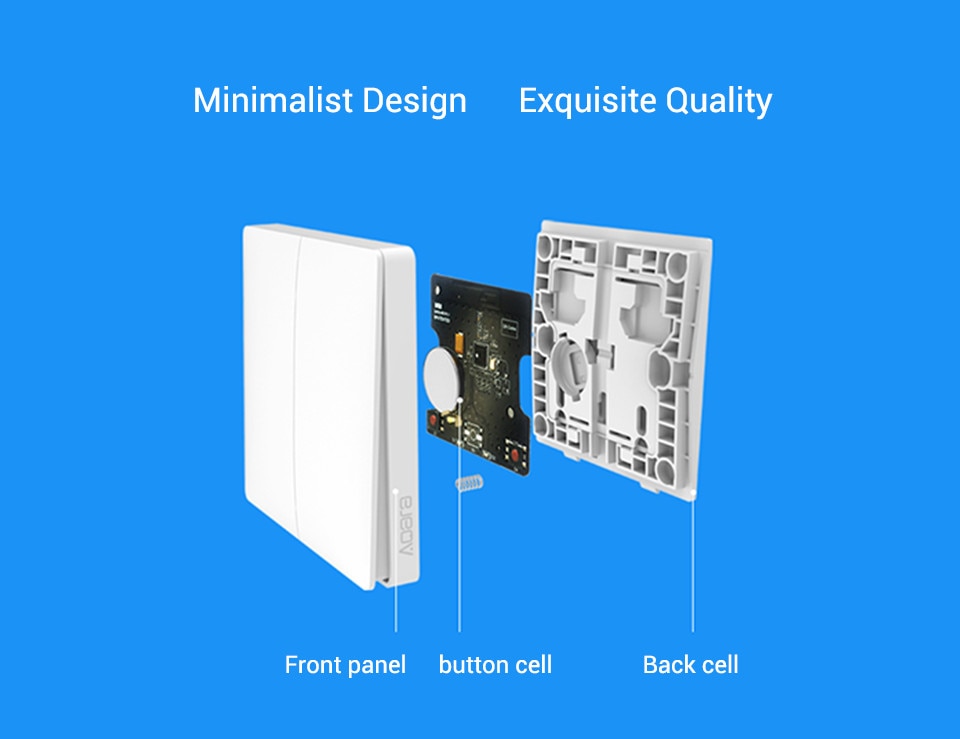

switch xiaomi aqara wall switch Minimalist Design Exquisite Quality

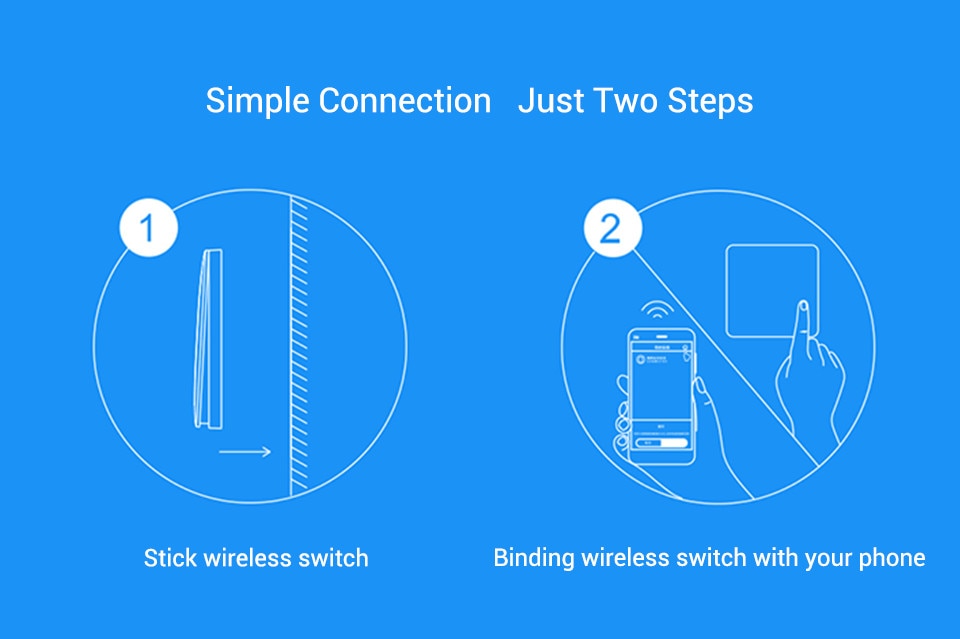

Simple Connection Just Two Steps

Pairing with wariety of intelligent accessories,give you more play options

Common Question&Answer:

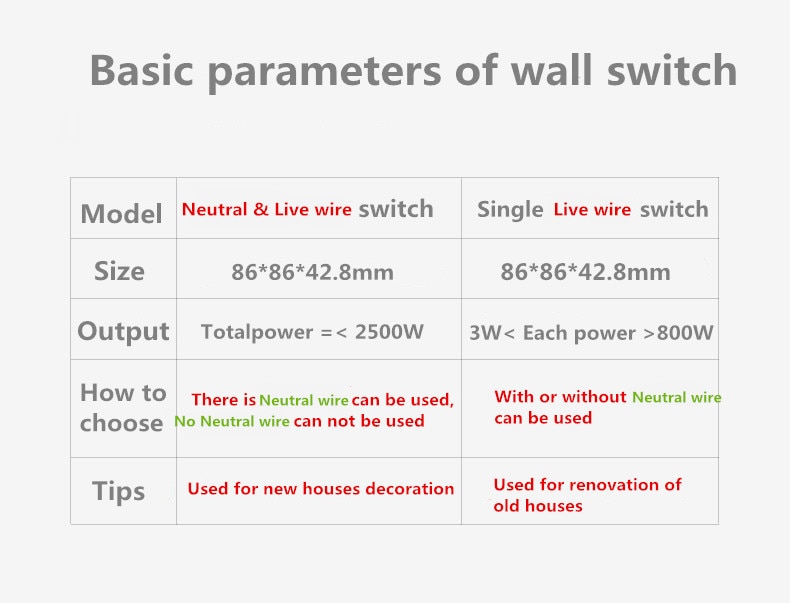

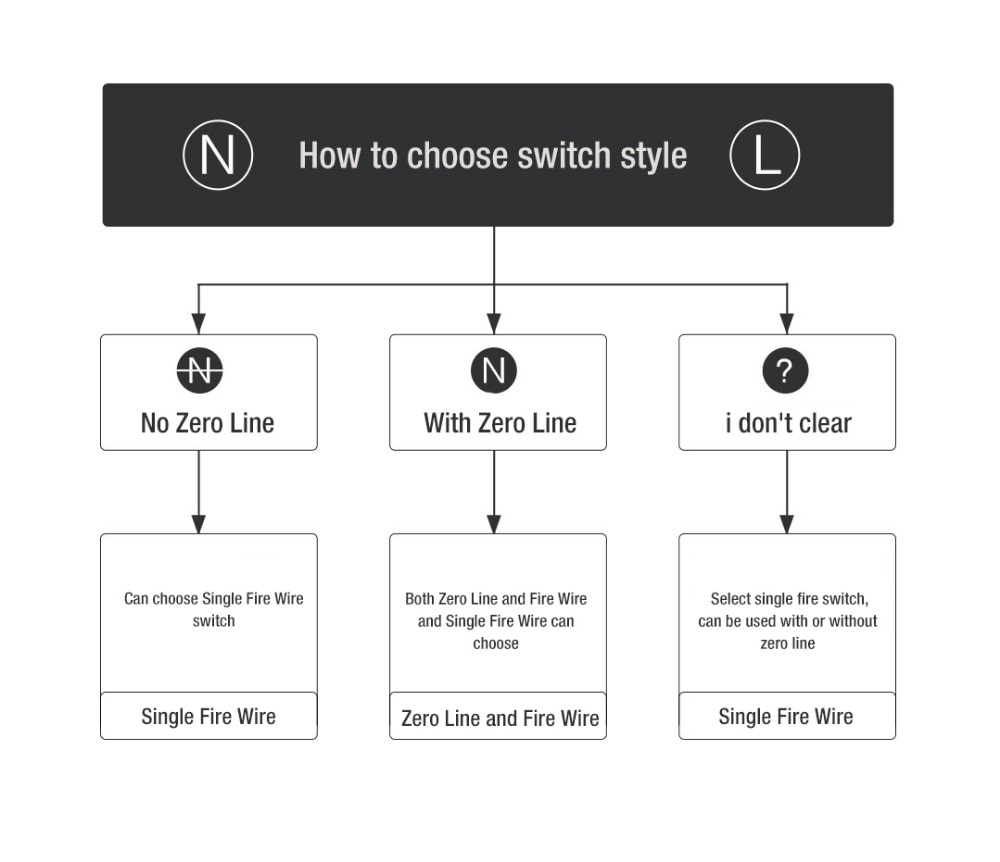

1. What is the difference between a “With Neutral Wire Wall Switch” and a “No Neutral Wire Wall Switch”?

A: Both are smart wall switches with the same main functions. With Neutral Wire Wall Switch needs to reserve the Neutral Wire at the switch when it is renovated. If you need to replace the original traditional switch in your home, we recommend to buy a “No Neutral Wire Wall Switch”.

2. What kind of power lamps do the wall switches need to work properly?

A: The single-fire version of the wall switch can support 3W energy-saving lamps or 5W LED lamps or 16W fluorescent lamps. The maximum power is less than 800W.

There is no minimum power requirement for the zero-fire wall switch. The total power of all loads of the entire switch cannot exceed 2500W.

3. What is the size of the wall switch into the wall?

A: L58*W58*H29mm   aqara wall switch, xiaomi light switch

4.What’s the color name mean?

  1. 1.With Neutral means This switch need to connect with the neutral wire

  2. 2.No Neutral means ” The switch do not need to connect the neutral wire, it can work no matter if there have neutral wire in your home.

  3. 3.1key means ” The switch can only control 1 light”

  4. 4.2key means ” The switch can control 2 lights

Note: The wall switch can connect the wire, can control any bulb through the wire; while the wireless key cannot wired, only can control aqara smart bulb or light through ZigBe

Wall switch aqara wall switch aqara switch xiaomi aqara wall switch xiaomi wall switch Main Features:Zero line and fire wire double key versio
