5.8dbi 6dBi lorawan 868MHz Iot omni fiber glass antenna N female 915mhz USA Europe hotspot miner rak helium HNT antenna

£55£69

SKU: 32709193728 Categories: , , Tag:

Description

  • Brand Name: SignalPlus
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Gain(dB): 6
  • Frequency: 806~960MHz
  • Connector: N-Female or customized
  • Gain: 6dBi

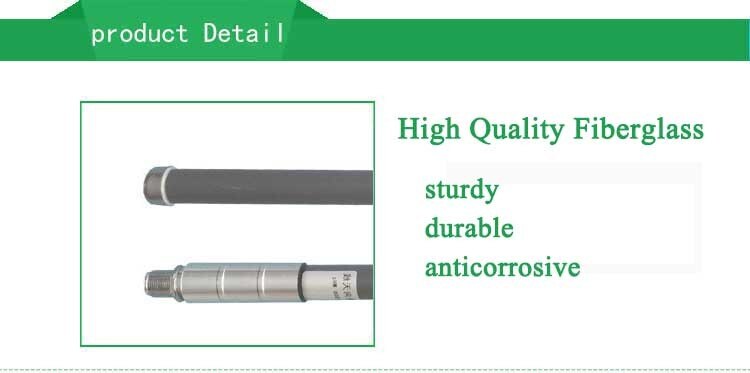

  • Material: Fiberglass
  • Max power: 50 W

Electrical Specifications

Frequency range(MHz)

824-960

Bandwidth(MHz)

70

Gain(dBi)

6

Half-power beam width(°)

H:360    V:20

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

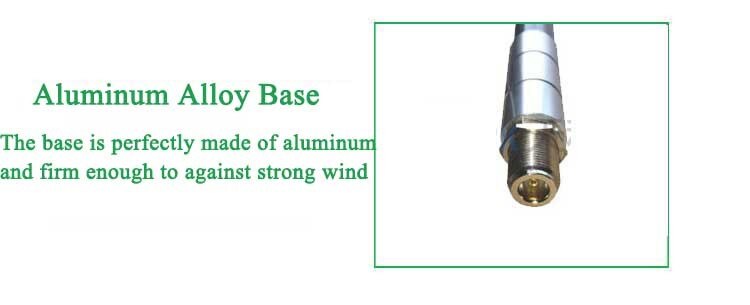

Input connector type

N Female

Mechanical Specifications

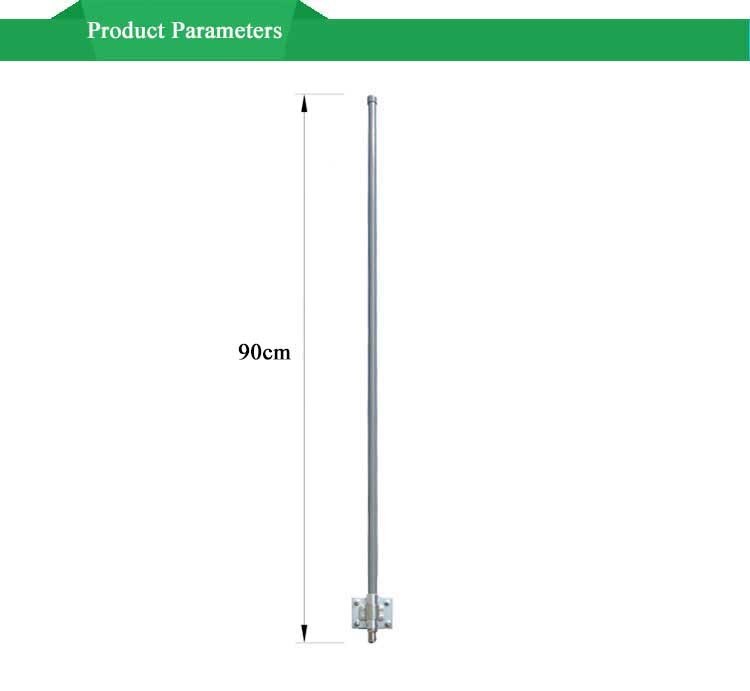

Dimensions (mm)

Φ20*900

Antenna weight(kg)

0.75

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Radome color

Gray

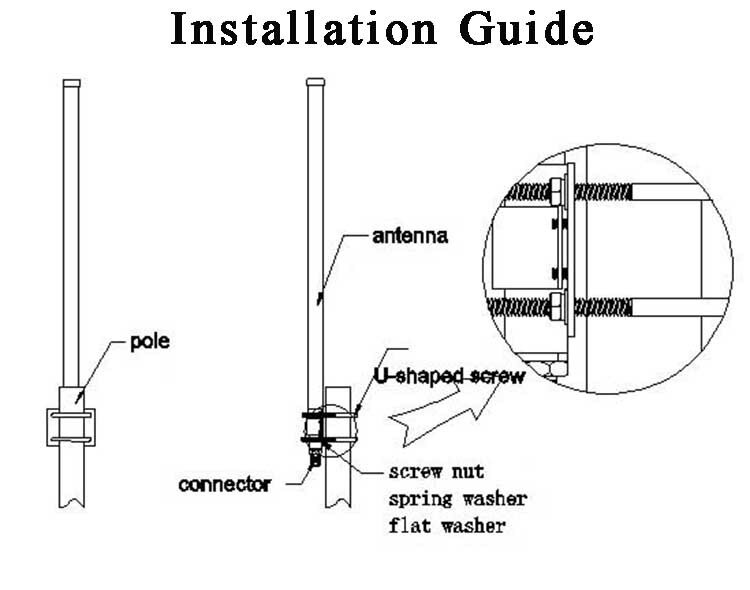

Mounting way

Pole-holding

Mounting hardware(mm)

¢40-¢60
