Description
- Brand Name: SignalPlus
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Gain(dB): 12
- Frequency: 824~960MHz
- Gain: 12 dBi
- Maximum Power: 100W
- Connector: N-Female
All the antennas are Factory Outlet .
High quality, Be customized, Wholsales can get the best price
Frequency:824MHz – 960mhz(Perfect on 868mhz and 915mhz )
gain :12dBiMaximum input power:100W

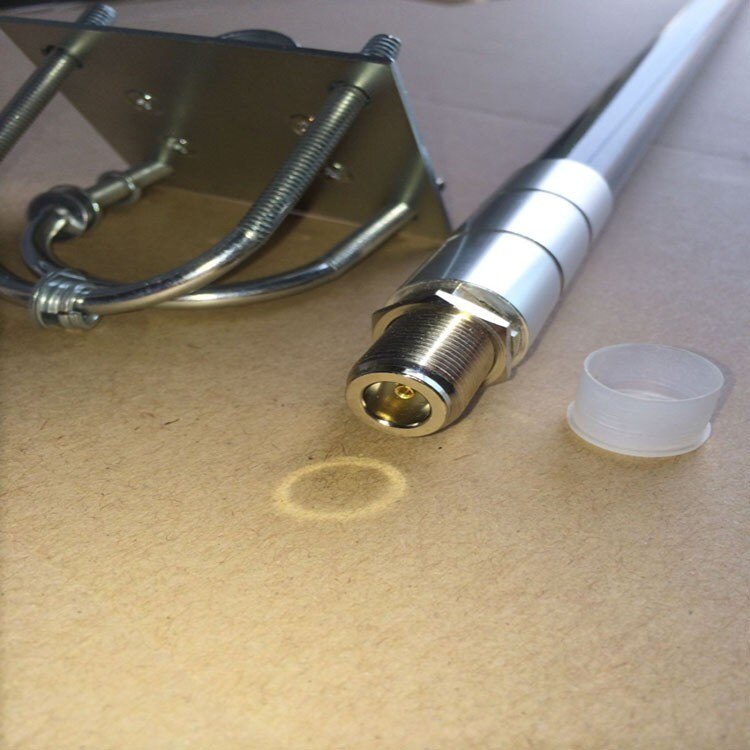

Connector :N-Female Color: Grey
|
Electrical Specifications |
|
|
Frequency range（MHz） |
824-960 |
|
Bandwidth（MHz） |
83.5 |
|
Gain（dBi） |
12 |
|
Half-power beam width（°） |
H:360 V:20 |
|
VSWR |
≤1.5 |
|
Input Impedance（Ω） |
50 |
|
Polarization |
Vertical |
|
Maximum input power（W） |
100 |
|
Lightning protection |
DC Ground |
|
Input connector type |
N Female |
|
Mechanical Specifications |
|
|
Dimensions (mm) |
Φ20*1100 |
|
Antenna weight（kg） |
0.75 |
|
Operating temperature（°c） |
-40～60 |
|
Rated Wind Velocity（m/s） |
60 |
|
Radome color |
Gray |
|

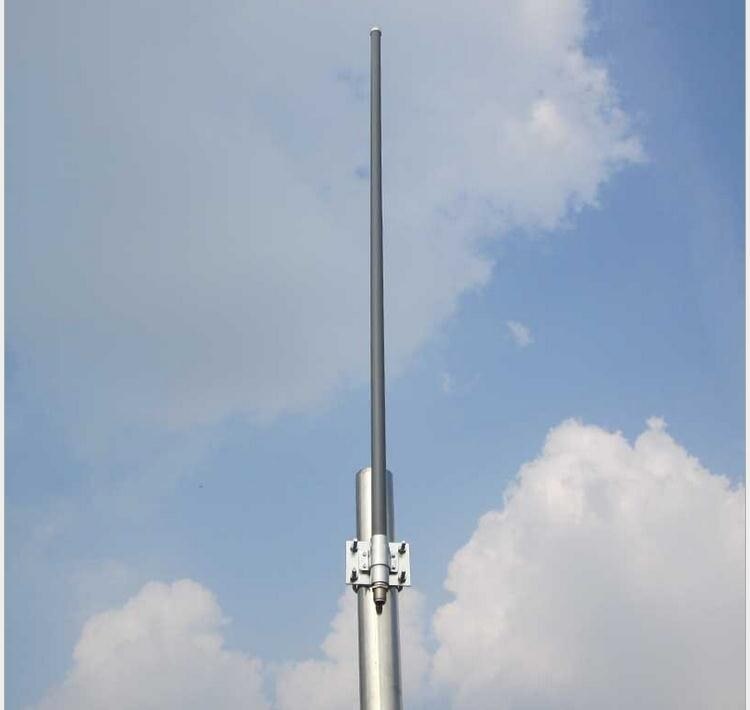

Mounting way |
Pole-holding |
|
Mounting hardware（mm） |
￠40-￠60 |
